Installing a magnetic track light system—commonly referred to as a magnet light system—is a highly customizable way to achieve a modern, flexible lighting layout in your home. Unlike traditional track lighting, magnetic systems allow you to easily snap, slide, and swap various light fixtures along a powered track without tools. However, achieving a clean, safe, and reliable installation requires careful planning, structural assessment, and strict adherence to electrical safety standards. Whether you are planning a recessed, surface-mounted, or suspended installation, understanding the mechanical and electrical requirements of these low-voltage systems is the first step toward a successful project.
Pre-Installation Safety and Ceiling Assessment
Before purchasing or installing any magnetic track light components, you must assess your ceiling’s structural integrity and material composition. In Singapore, residential ceilings typically consist of cast concrete in standard HDB flats, or plasterboard false ceilings in condominiums and landed properties. Concrete ceilings provide excellent structural support but require specialized masonry anchors and impact drilling. Plasterboard ceilings, on the other hand, are much easier to cut for recessed tracks but have strict weight limitations that require you to locate and secure the track to the underlying metal or timber joists. If you plan to install a heavy track run or suspended fixtures, relying solely on plasterboard anchors can lead to structural failure over time.
Electrical safety must be your top priority before beginning any physical installation work. Always isolate the power supply by turning off the corresponding circuit breaker at your main distribution board, rather than relying solely on the wall switch. Use a reliable, non-contact voltage tester to verify that the wires at the ceiling outlet are completely dead before touching them. It is critical to define the boundary between DIY tasks and professional electrical work. While mounting the physical track and snapping in the magnetic light modules can be done as a DIY project, any fixed electrical modifications—such as running new wiring, installing a dedicated transformer box, or connecting the system to your home’s mains power—should be performed by a qualified, licensed electrician to ensure compliance with local electrical safety regulations.

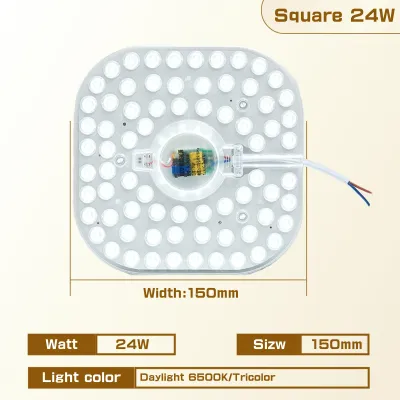

Products mentioned in this guide
Prices are valid at publication and may change. Please refer to the product page for the latest price.
Essential Tools and Materials
Having the correct tools and materials on hand ensures the installation proceeds smoothly and safely. For the physical mounting, you will need a high-quality drill (with masonry bits for concrete or standard bits for plasterboard), a spirit level or laser level to guarantee straight alignment, a measuring tape, and a pencil for marking. The mounting hardware must be carefully matched to your ceiling type; use heavy-duty toggle bolts or spring anchors for plasterboard, and expansion plugs or concrete screws for solid concrete.
For the electrical phase, gather insulated screwdrivers, wire strippers, electrical tape, and secure wire connectors (such as lever-nuts) to ensure tight, safe connections. Crucially, you must verify the specifications of your magnet light system before installation. Check the input and output voltage, the maximum wattage limit of the track, the physical dimensions of the track channel, the dimming method (such as Triac, 0-10V, or DALI), and ensure the system carries the appropriate electrical safety certifications for your region.
Step-by-Step Track and Fixture Installation
Once your tools are prepared and the power is safely isolated, you can begin the physical installation of the track and the subsequent connection of the light fixtures.
Mounting the Track to the Ceiling
The first step in the physical installation is mapping out your track layout on the ceiling. Use a laser level or a long spirit level to project a straight line where the track will sit, and mark the mounting hole locations with a pencil. If you are installing a recessed magnetic track, you will need to cut a precise channel into the plasterboard ceiling using a drywall saw, ensuring the opening matches the manufacturer’s specified dimensions.
Next, drill pilot holes at the marked locations. Insert the appropriate anchors for your ceiling material, ensuring they fit tightly without any play. For surface-mounted tracks, align the pre-drilled holes in the track base with the ceiling anchors and secure them firmly using screws. If you are installing an embedded or recessed profile, secure the aluminum flanges to the ceiling’s metal framing or joists, apply joint tape, plaster over the flanges to create a seamless finish, and paint the ceiling before proceeding to the electrical connections. Ensure the entire track assembly is flush against the ceiling and completely stable, with no wobbling or sagging.
Wiring and Power Connection
With the track securely mounted, you can proceed to the electrical wiring. Begin by routing the low-voltage power cable from your transformer through the designated entry point of the track’s power feed connector. It is vital to remember that magnetic track systems almost always operate on low-voltage DC power (typically 24V or 48V), meaning you must never connect the track rails directly to your 230V mains power supply without a compatible transformer.
Connect the live, neutral, and ground wires from your power supply to the input side of the transformer, and then connect the low-voltage output wires to the track’s power feed terminal. Follow the manufacturer’s wiring diagram precisely, paying close attention to local wire color codes (typically brown for live, blue for neutral, and green/yellow for earth/ground). If you encounter damaged existing wiring, find that your ceiling outlet lacks a proper ground connection, or notice any mismatch between the track’s voltage requirements and your power supply, stop immediately and consult a licensed electrician to resolve the issue safely.
Attaching the Magnet Light Fixtures
Once the wiring is complete and the track is fully secured, you can begin installing the individual magnet light fixtures. Before handling any light modules, double-check that the main power supply remains switched off to prevent accidental short circuits or electrical shocks during handling.
Examine the light fixtures and locate the magnetic contacts and mechanical locking tabs. Align these contacts with the internal copper rails inside the track groove. Gently push the fixture into the track channel; the integrated magnets will pull the fixture into place, establishing a firm physical hold. Many systems also feature secondary mechanical locks or clips that click into place to provide extra security, especially for heavier spotlights or pendant modules. Ensure each fixture is seated flush within the track and that the mechanical locks are fully engaged before releasing your grip.
Testing and Final Adjustments
With all fixtures securely mounted, you are ready to test the system. Restore the power at your main circuit breaker and turn on the wall switch. Observe the track lights carefully as they illuminate. Check each individual magnet light module to ensure it lights up consistently without flickering, buzzing, or emitting unusual heat, which could indicate a loose connection or an overloaded transformer.
If any adjustments are needed, turn off the power switch before moving or repositioning the fixtures. Although low-voltage magnetic tracks are designed for easy adjustment, isolating the power during repositioning prevents electrical arcing and protects the copper contacts from premature wear. Slide or snap the fixtures to your desired positions along the track, and adjust the beam angles of the spotlights to highlight specific architectural features, artwork, or functional zones in your room based on your spatial preferences.
Frequently Asked Questions (FAQ)
Can I install magnetic track lights on a plasterboard ceiling?
Yes, you can install magnetic track lights on a plasterboard ceiling, but you must take structural weight limits into account. Standard plasterboard alone cannot reliably support the continuous weight of an aluminum track and multiple magnetic light fixtures, especially if you plan to use heavier spotlight or pendant modules. To ensure a safe installation, you should locate the ceiling joists or metal studs using a stud finder and secure the track directly to these structural supports. If mounting between joists is unavoidable, you must use high-quality metal toggle bolts or spring anchors designed for hollow walls, which distribute the weight over a larger surface area. For recessed installations, it is highly recommended to install timber support noggins behind the plasterboard during the renovation phase to provide a solid anchoring point for the track profile.
Do magnetic track lights require a transformer?
Yes, almost all magnetic track light systems require a transformer (also known as an LED driver). Because the conductive copper rails inside a magnetic track are exposed and easily touchable, these systems are engineered to run on safe, low-voltage direct current (typically DC 24V or DC 48V) rather than high-voltage mains electricity. Connecting a magnetic track directly to your home’s 230V mains power will destroy the fixtures and present a severe electrical and fire hazard. When planning your installation, check the manufacturer’s specifications to determine whether your system uses an external remote transformer (which can be hidden in a ceiling access hatch, distribution board, or cabinet) or an in-line track transformer that snaps directly into the track channel. Always ensure that the total wattage of all connected light fixtures does not exceed 80% of the transformer’s maximum rated wattage capacity to prevent overheating and ensure long-term reliability.
